What Is a Gearbox Drive?
A gearbox drive is a mechanical transmission system that connects a motor to a driven machine. It changes speed, increases usable torque, supports motion control, and helps industrial equipment move in a more practical and reliable way.
What a Gearbox Drive Means
A gearbox drive is a mechanical system used to transfer power from a motor to a machine. In most industrial equipment, the motor does not directly match the speed, torque, or direction required by the final load. The gearbox is placed between the motor and the machine to make the motor output more useful.
In simple terms, a gearbox drive takes high-speed rotation from a motor and converts it into controlled output motion. This output may be slower, stronger, better aligned with the machine layout, or more suitable for positioning. That is why gearbox drives are widely used in automation equipment, robotic systems, CNC machinery, packaging lines, conveyors, and rotary indexing mechanisms.
How a Gearbox Drive Works

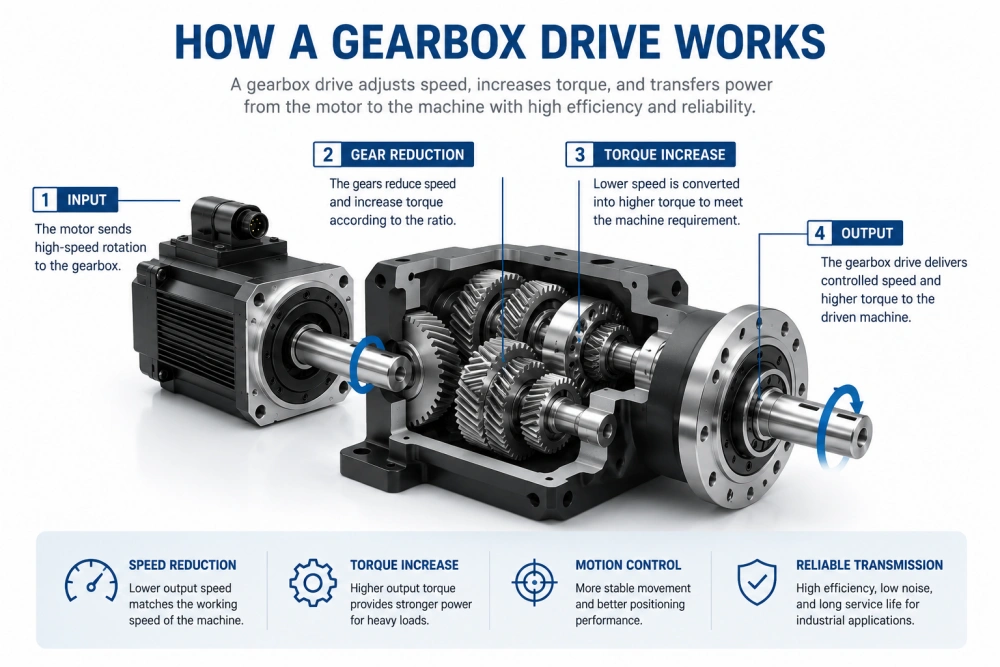

A gearbox drive works through gear engagement. The input shaft receives rotation from the motor. Inside the gearbox, gears with different sizes or arrangements change the speed and torque. The output shaft then delivers the adjusted motion to the machine.
When output speed is reduced, output torque usually increases within the limits of the gearbox design and efficiency. This is why a gearbox allows a motor to drive heavier loads, accelerate mechanisms more smoothly, or control movement more effectively.
The gearbox does not create extra power by itself. It changes the relationship between speed and torque. If a machine needs lower speed but more usable torque, a gearbox drive is often a practical choice. If the system also needs accurate positioning, the gearbox design must be selected carefully because backlash, rigidity, and inertia matching can influence servo performance.
Main Functions of a Gearbox Drive
A gearbox drive is not only a speed reducer. In industrial motion systems, it can support several important mechanical functions at the same time.
Speed Reduction
It reduces motor speed to match the working speed of conveyors, rotary tables, feed systems, and other machine mechanisms.
Torque Increase
It helps provide stronger output torque for moving loads, accelerating mechanisms, or maintaining stable machine operation.
Motion Matching
It helps match the motor to the load by adjusting ratio, direction, installation layout, and mechanical response.
In servo-driven machines, these functions become even more important. The gearbox is inside the drive chain, so its backlash, stiffness, efficiency, and mounting accuracy can affect how the system responds to control commands.
Common Types of Gearbox Drives
Different gearbox drive types are used for different installation layouts and performance requirements. The best choice depends on the application, not only the motor size.
| Gearbox Drive Type | Main Use | Typical Advantage |
|---|---|---|
| Inline Gearbox Drive | Servo axes, conveyors, automation modules, CNC auxiliary mechanisms | Straight motor-to-load layout with compact transmission |
| Right Angle Gearbox Drive | Packaging machines, compact equipment, side-mounted motor layouts | Changes power direction by 90 degrees to save installation space |
| Planetary Gearbox Drive | Robotics, automation equipment, indexing units, precision servo systems | High torque density, compact size, and good rigidity |
| Rotary Positioning Drive | Inspection stations, rotary tables, assembly fixtures, indexing systems | Supports repeated angle positioning and rotary motion control |
Where Gearbox Drives Are Used
Gearbox drives are used in many machines because most industrial loads cannot be driven efficiently by direct motor output alone. The machine may need slower movement, stronger torque, more compact installation, or repeated positioning.
- Automation equipment: used in transfer units, pick-and-place systems, assembly stations, and production modules.
- Robotics: used in joints, grippers, rotary axes, and compact servo-driven mechanisms.
- CNC machinery: used in tool changers, rotary tables, feed systems, and positioning mechanisms.
- Packaging equipment: used in conveyors, labeling machines, filling systems, sealing units, and rotary indexing stations.
- Inspection systems: used in camera positioning, test fixtures, and rotary inspection platforms.
How to Choose a Gearbox Drive
Choosing a gearbox drive should begin with the machine requirement. A common mistake is to start only from motor power or gearbox appearance. In real projects, the load, motion cycle, space, accuracy, and duty condition matter more.
Important selection questions
- What is the required output speed?
- How much output torque is needed?
- Is the load continuous, intermittent, or shock-loaded?
- Does the system need low backlash or high repeatability?
- Should the motor be installed inline or at a right angle?
- Is there limited mounting space inside the machine?
- Is the gearbox used with a servo motor, stepper motor, or another drive source?
For servo systems, backlash and rigidity should be considered early. A servo motor can control position accurately, but if the gearbox has too much backlash or weak torsional stiffness, the final machine movement may not follow the command as expected.
Gearbox Drive vs Direct Drive
Direct drive means the motor drives the load without a gearbox. This can be useful in some high-end systems, especially when very low mechanical backlash is required. However, many industrial machines still use gearbox drives because they provide practical torque conversion, flexible mounting, and better motor size matching.
A gearbox drive is often preferred when the machine needs stronger torque, lower output speed, right angle installation, compact structure, or a more cost-effective motor solution.
Related Gearbox and Motion Resources
Gearbox-drive.com provides general gearbox drive knowledge and application direction. For product-level research, the following related resources may help users continue their study.
FAQ
Is a gearbox drive the same as a gearbox?
Not exactly. A gearbox is the mechanical unit itself. A gearbox drive usually refers to the complete drive function that uses the gearbox to transfer and adjust motor power for a machine.
Why is a gearbox drive used with a servo motor?
A gearbox drive helps match servo motor speed and torque to the load. It can also improve installation flexibility and make the motor more suitable for industrial motion requirements.
What is the main benefit of a planetary gearbox drive?
A planetary gearbox drive offers compact size, high torque density, good rigidity, and multiple ratio options, which makes it suitable for automation and servo applications.
When should I use a right angle gearbox drive?
A right angle gearbox drive is useful when the motor cannot be installed directly in line with the output shaft, or when the machine has limited installation space.
Need Help Understanding a Gearbox Drive Application?
Contact Gearbox Drive if you are comparing gearbox drive systems, servo reducer layouts, planetary gearbox options, or rotary motion solutions for industrial automation.
